Description

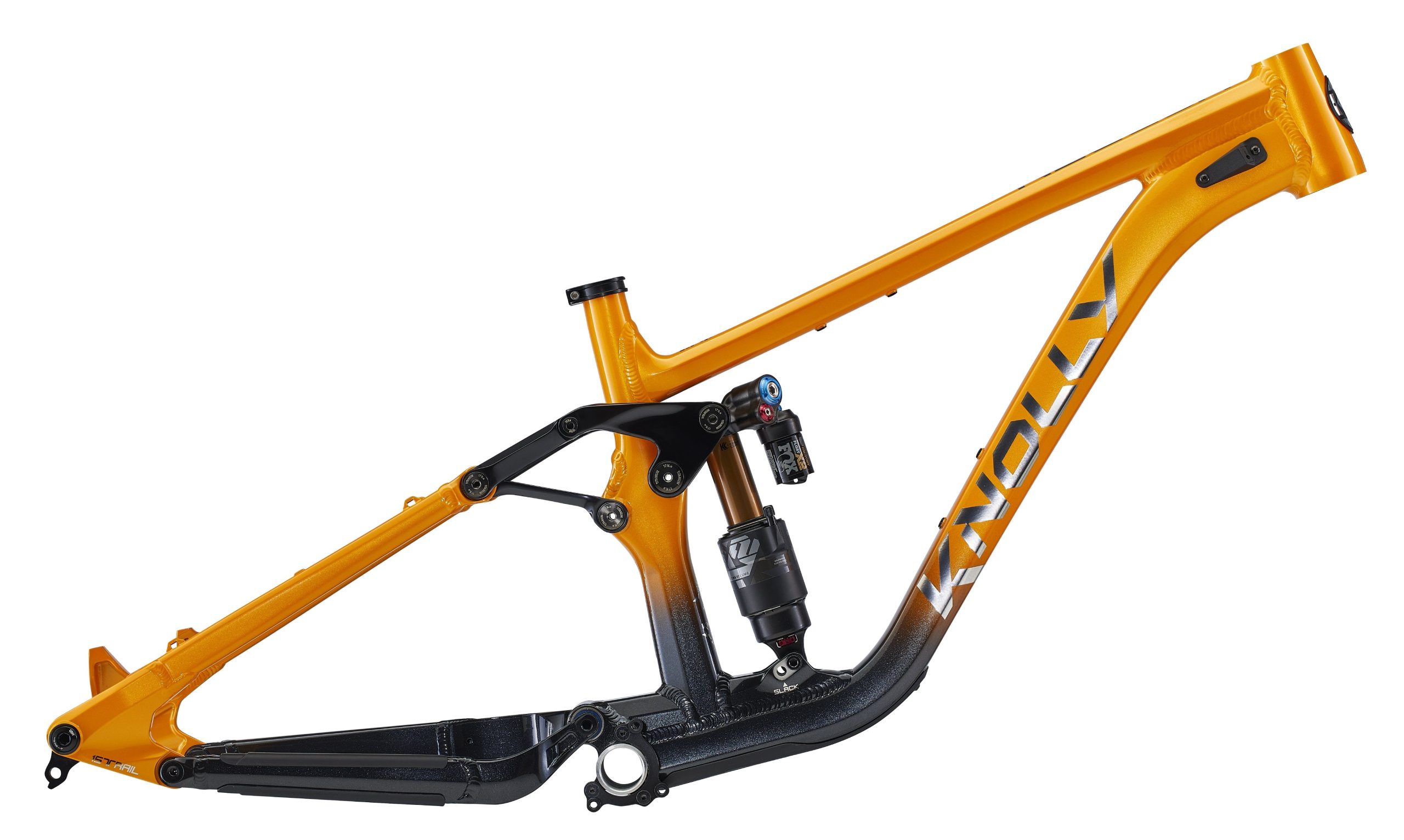

Knolly redesigned their legendary Warden platform to conquer everything from Enduro races to Freeride lines with its 170mm of travel and MX wheels. With a fresh straight top tube, high quality Enduro bearings on all pivots, and a unified rocker link to stiffen the rear end, the Knolly Warden 170 will keep asking for more no matter how much you give it. Knolly s patented Fourby4 suspension design delivers traction and confidence on the steepest lines, while maintaining pedaling efficiency to serve as the one bike quiver killer you ve been looking for.

Built around a new sizing philosophy, the S sized Knollys are built to fit anyone from Danny Devito to Lebron James, and their balanced geometry features size specific chainstays that keep every size feeling natural no matter your height. Featuring a flip chip at the lower shock mount, you can swap your Warden between Neutral and Slack, adjusting your head angle, seat angle, and bb drop with just one bolt. Stunning glossy paint jobs make any build pop, with a glittery finish on every color spec besides the Raw.

Specs

• Frame Material: 6066 Aluminum
• Rear Travel: 170mm
• Intended Fork Length: 170mm 29 (584mm A C Length)
• Max Rear Tire Width: 27.5 x 2.6
• Rear Dropouts: 12 x 157mm
• Shock Hardware: m8 x 30mm Lower, Trunnion Upper
• Shock Size: 205mm x 62.5mm
• Seat Post Diameter: 31.6mm
• Seat Post Collar: 35mm
• Headset: ZS 44mm upper & ZS 56mm lower
• Chainguide Mount: ISCG-05 (removable)
• BB Shell: 73mm BSA threaded
• Chainline: 54-57 with 55-56.6mm optimal
• Rear Brake Mount: 180mm native
• Flip Chip: Yes
• Internal Routing: Yes
• Bottle Mounts: Yes
• Tool Mounts: Yes

• Geometry

  		Neutral		Slack
  Head angle		63.25º		62.5º
  Effective seat tube angle		77.75º		77.0º
  BB height		356mm		347mm
  BB drop		0.5mm		9.5mm

  		S1 – X-Small		S2 – Small		S3 – Medium		S4 – Large		S5 – X-Large
  Reach		431mm		457mm		482mm		508mm		533mm
  Stack		605mm		612mm		619mm		628mm		637mm
  Head tube length		100mm		105mm		115mm		125mm		135mm
  Effective top tube length		561mm		589mm		616mm		643mm		670mm
  Actual top tube length		557mm		578mm		608mm		633mm		657mm
  Seat tube length		330mm		350mm		390mm		440mm		490mm
  Seat tube max insertion depth		260mm		280mm		320mm		370mm		420mm
  Theoretical saddle height (from BB axis)		650mm		700mm		750mm		800mm		850mm
  Seat tube angle (actual)		70.8º		71.3º		71.8º		72.8º		73.8º
  Stand over height		670mm		685mm		715mm		740mm		755mm
  Chainstay length		434mm		434mm		438mm		442mm		446mm
  Wheelbase length		1214mm		1243mm		1277mm		1310mm		1344mm

  Additional information

  Color	Raw, Blueberry, Orange Black Fade, Defender Green
  Size	X-Small, Small, Medium, Large, X-Large
