holder dimensions

Height Range: 7.25 max (using optional supports)
Width Range: 1.25 – 3.5
Max Depth: 1.5

clamp range

U-Bolt: .5 – 1.25 diameter
Strap Clamp: 1.57 – 3.15 diameter

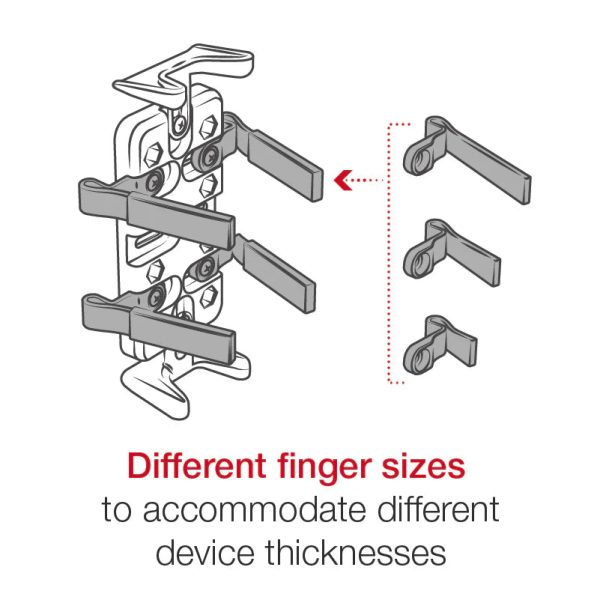

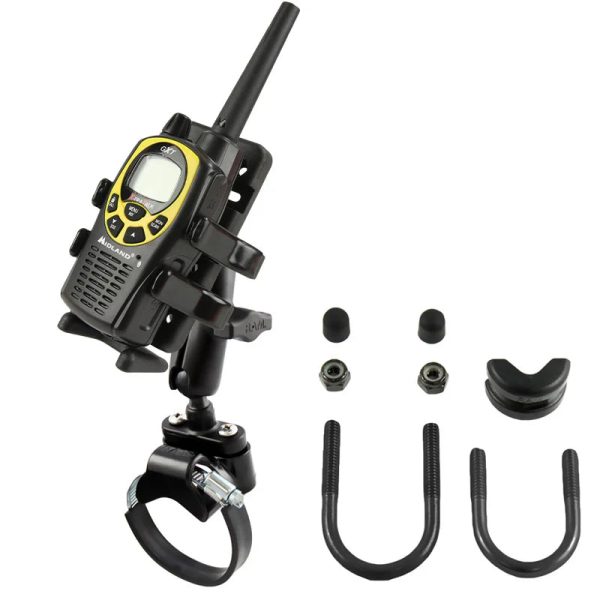

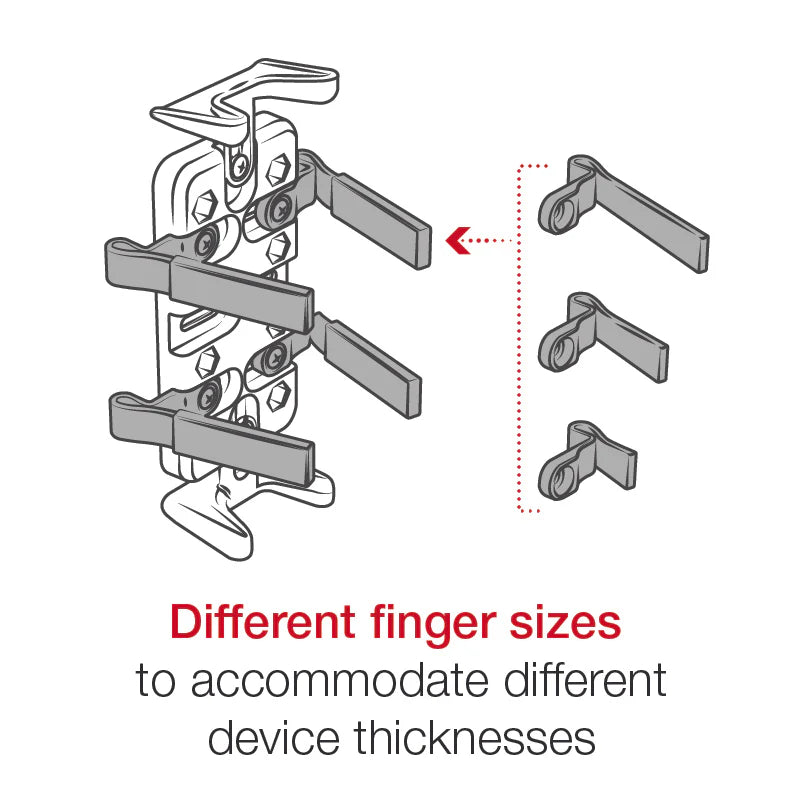

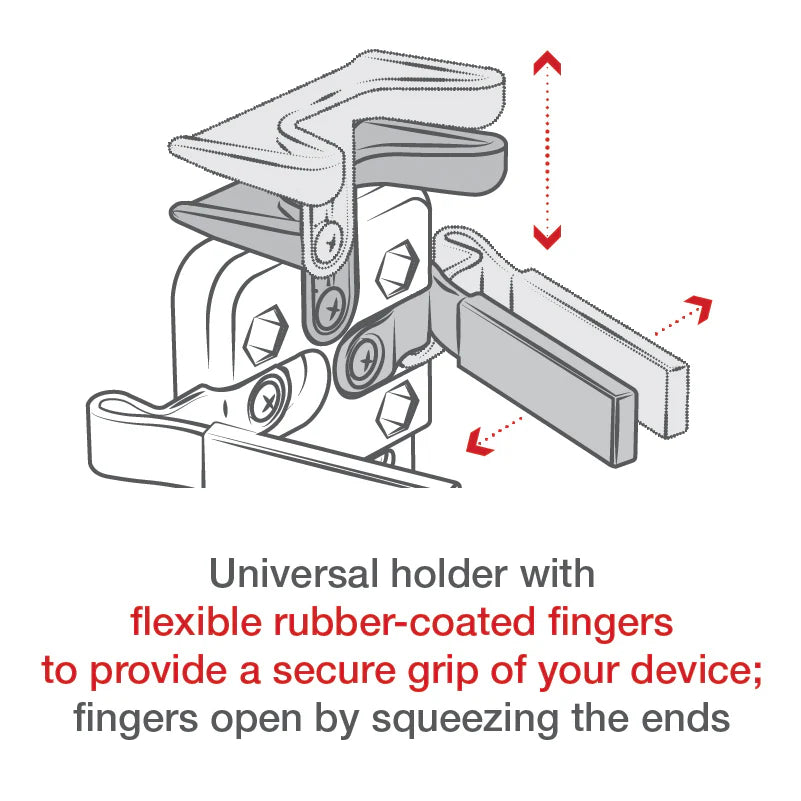

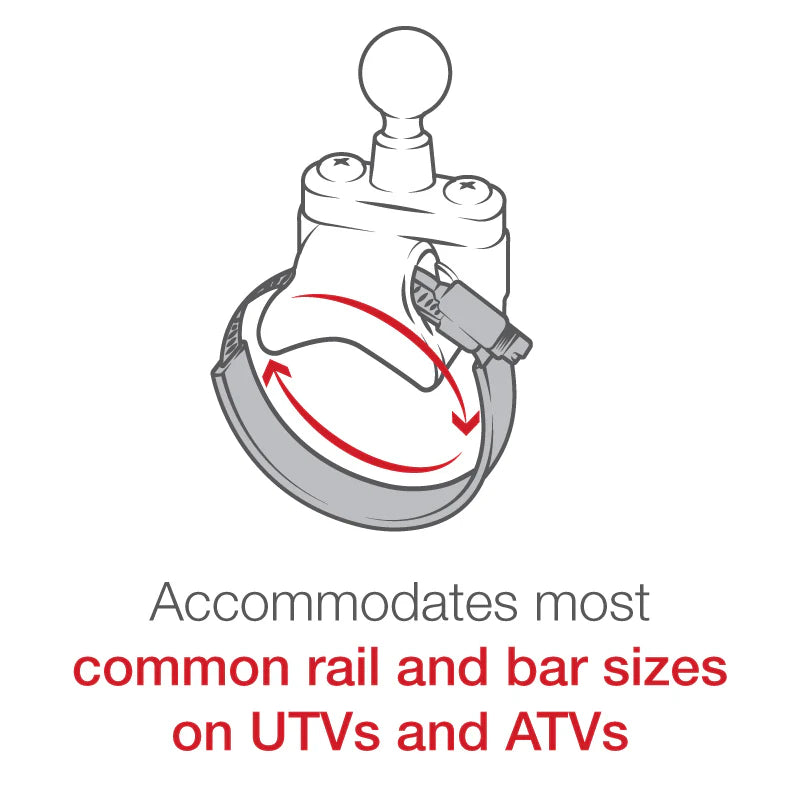

The RAM-B-149Z-2-UN4 consists of a steel strap base, u-bolt bases, double socket arm and universal Finger Grip™ cradle. The mount is designed with a RAM 1 diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. Designed for a clean installation, the RAM strap mount will accommodate most common roll bar sizes, allowing for the placement of the RAM rubber ball base. This mount can also be attached to smaller diameter handlebars on ATVs using the included hardware.



hardware included

Assembly Hardware
(1) Strap Clamp Adapter
(2) 1 4 -20 x 1 Machine Screws
(2) 1 4 -20 Nylock Nuts
(1) Zinc Worm Drive Strap Clamp
(1) 6 Rubber Strip
(1) 1 4 -20 U-Bolt for .5 – 1 Rails
(1) 1 4 -20 U-Bolt for 1 – 1.25 Rails
(2) Rubber Caps
(1) U-Bolt Spacer

holder dimensions

Height Range: 7.25 max (using optional supports)
Width Range: 1.25 – 3.5
Max Depth: 1.5

clamp range

U-Bolt: .5 – 1.25 diameter
Strap Clamp: 1.57 – 3.15 diameter

socket to socket length

3

ball size

B Size (1 )

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminum
High strength composite

packaging type

Retail Bag

Weight

1.29 lb

Additional information

Title	Default Title
