OVERVIEW

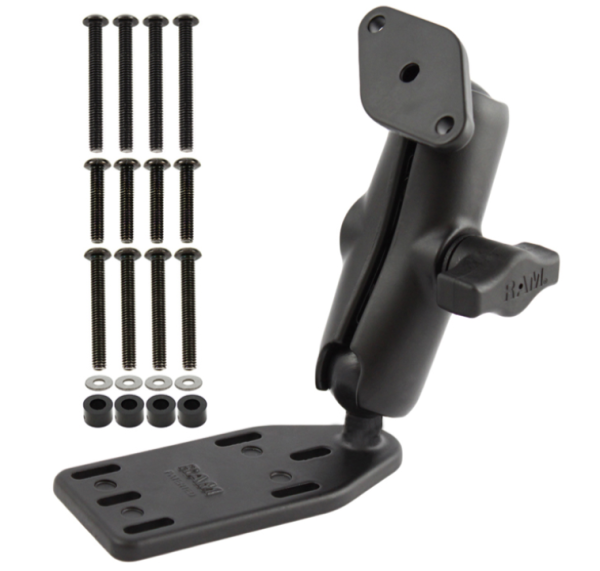

The RAM-B-183U consists of a brake clutch reservoir cover plate (1 ball off-set), STANDARD length double socket arm and diamond base adapter. The base fits cleanly over your existing brake clutch reservoir cover with the 1 ball offset. Made of die cast aluminum with an over molded rubber ball, both form and function are unsurpassed. Installation is simple and all necessary hardware is included. The mount is NOT an additional reservoir cover, but instead a plate shaped similarly to the cover that mounts above the cover using the covers screw holes and longer screws. The kit actually comes with 3 sets of screws of differing lengths. The center 2 slots are 2 7 16 inches center to center and are just under a 1 2 inch long.

HARDWARE INCLUDED

(4) M4 x 20mm Machine Screws
(4) M4 x 30mm Machine Screws
(4) M4 x 35mm Machine Screws
(4) Nylon Spacers
(4) M4 Stainless Steel Washers



PRODUCT DIMENSIONS

Overall Height: 5



SOCKET-TO-SOCKET LENGTH

3

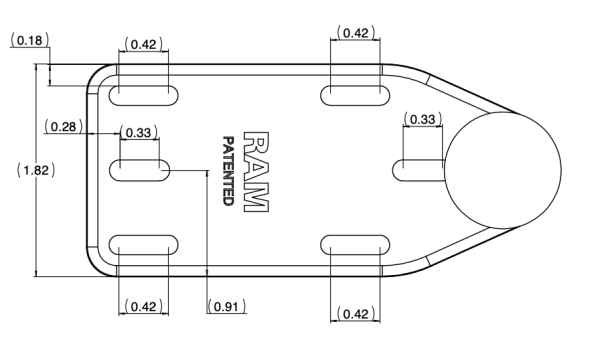

HOLE PATTERN

2-Hole AMPS: 1.912



BALL SOCKET SIZE

B Size (1 )



WEIGHT CAPACITY

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb



MATERIALS

Marine-grade aluminum



PACKAGING TYPE

Poly Bag



WEIGHT

0.51 lbs.



ADDITIONAL INFORMATION

• This mount is not compatible with the 2016 BMW R1200RT.
• MUST BE UNOPENED AND UNUSED TO QUALIFY FOR RETURN
• Additional information
  Title	Default Title
  Related products
  50%
  Add to wishlist
  Compare

  Select options This product has multiple variants. The options may be chosen on the product page
  Default
  RAM-B-149U RAM Mounts Handlebar U-Bolt Double Ball Mount w Diamond Adapter Base Online Sale
  $41.49 Original price was: $41.49.$20.75Current price is: $20.75.
  50%
  Add to wishlist
  Compare

  Select options This product has multiple variants. The options may be chosen on the product page
  Default

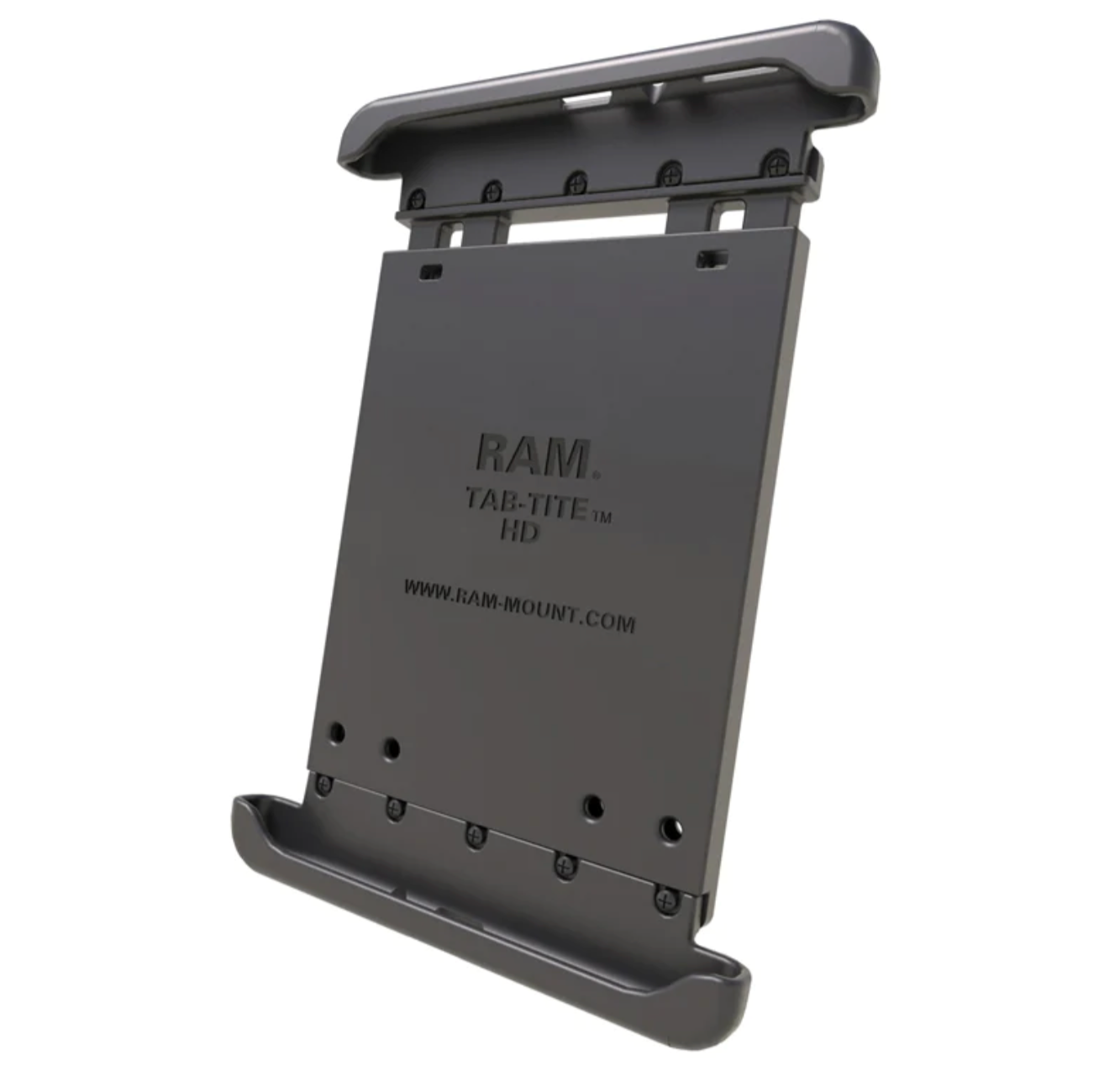

  RAM-HOL-TAB27U RAM Tab-Tite™ Tablet Holder for Samsung Galaxy Tab A 8.0 + More Online
