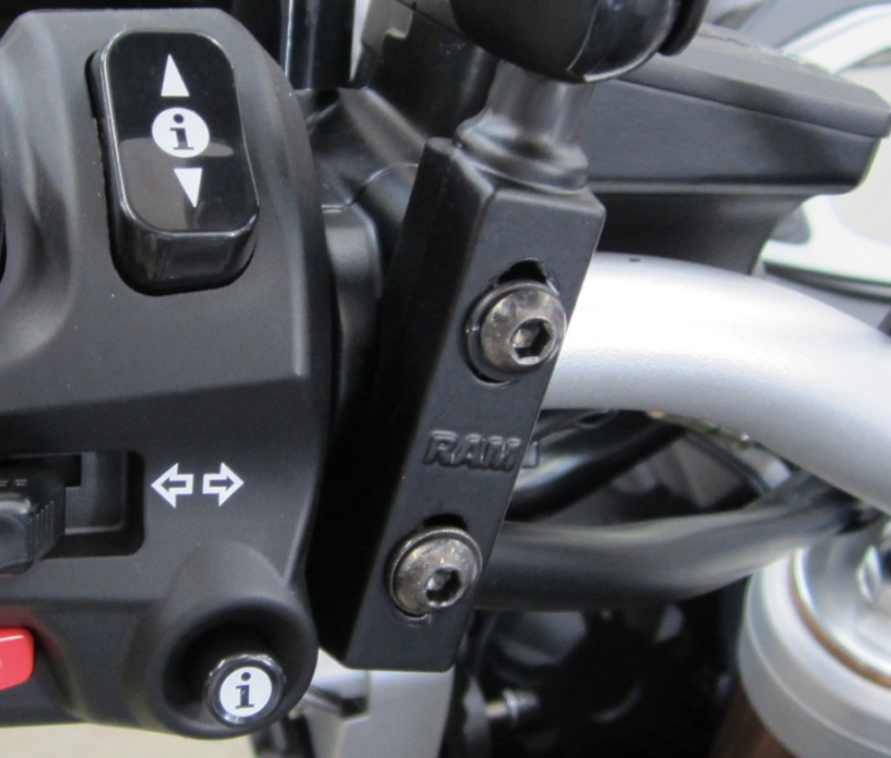

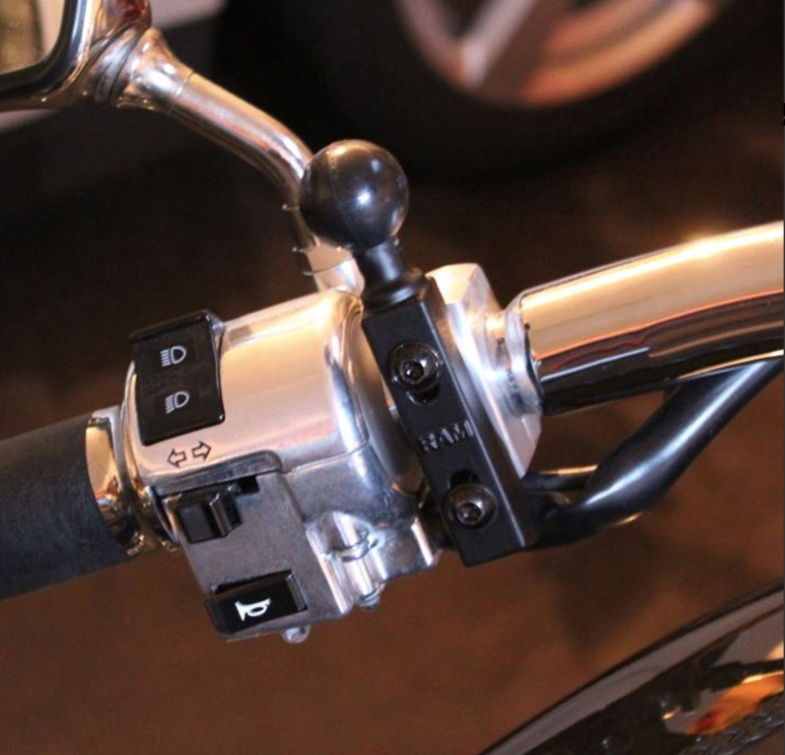

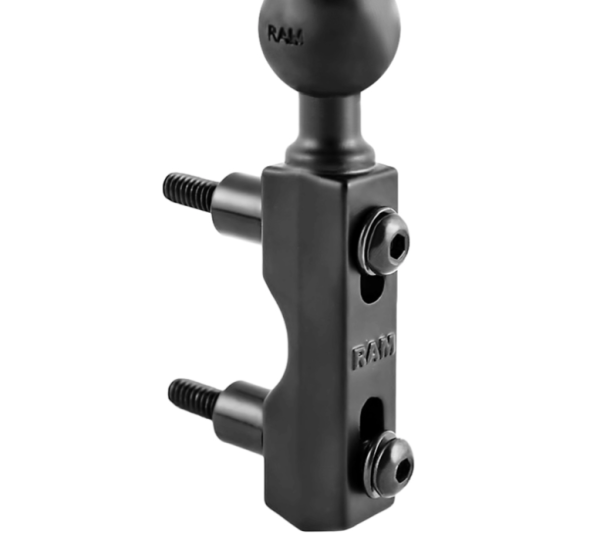

The RAM-B-309-1U connects to your handlebar clutch brake clamp, left or right side, and holds one 1 diameter mounting ball. The base fits the control clamps on your motorcycle with 40mm x 6mm stainless steel hardware, provided in the kit. To see if the RAM-B-309-1 base will mount to your motorcycle, check the hole spacing of the base against your clutch brake reservoir. The holes centers have a minimum width of 0.94 and a maximum of 1.58 .

Material: Powder Coated Marine Grade Aluminum

Ball Size: 1 Rubber Ball B Size

Note: The U in the part number reflects product packaged in poly bag.

Parts Index
A . MOTORCYCLE HANDLEBAR BASE (QTY. 1)
B. 1 2” LONG NYLON SPACER (QTY. 2)
C. 1 4”-20 2” BUT HD HEX DR STST MACH SCREW (QTY. 2) A D. 6MM X 55MM BUT HD DR STST MACH SCREW (QTY. 2) E.1 4” STST LOCK WASHER (QTY. 2)

SPECIAL NOTE: PLEASE CHECK THE RAM-MOUNTS WEBSITE TO ENSURE COMPATIBILITY WITH YOUR MOTORCYCLE BEFORE PURCHASING. NO REFUNDS FOR WRONG ITEM PURCHASED.

Additional information

Title	Default Title

Related products

50%

Add to wishlist

Compare

Select options This product has multiple variants. The options may be chosen on the product page

Default

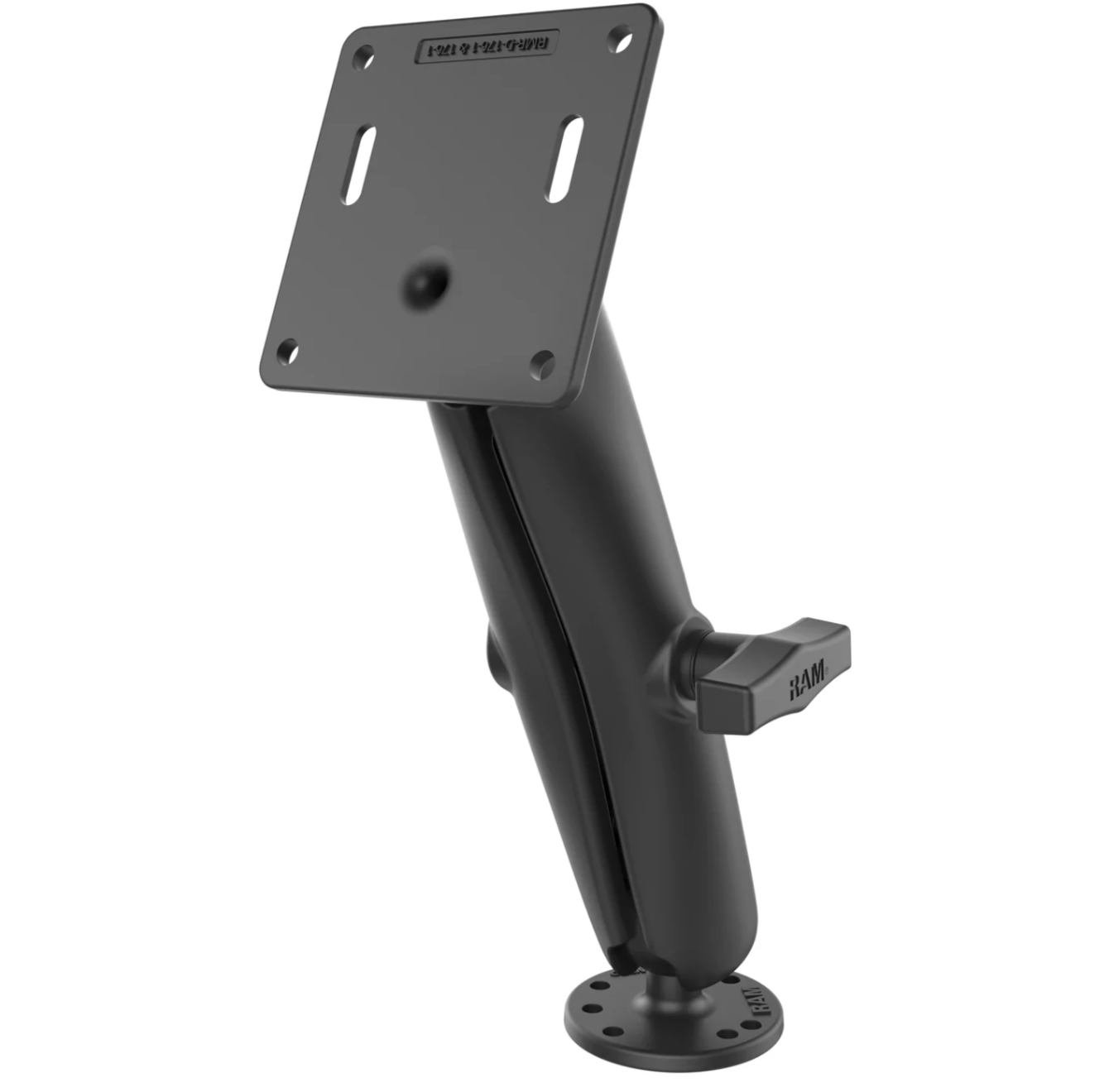

RAM-101U-D-2461 RAM Mounts C-Size Double Ball Mount with 75x75mm VESA Plate For Cheap
