FEATURES

• Hardwire charger includes USB Type-C male connection with input of 30-64VDC and output of 5-15VDC
• Supports Power Delivery
• When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
• Part of the GDS^{® Ecosystem™ to keep devices protected, connected, and charged in nearly any application}
• Backed by a 3-year warranty

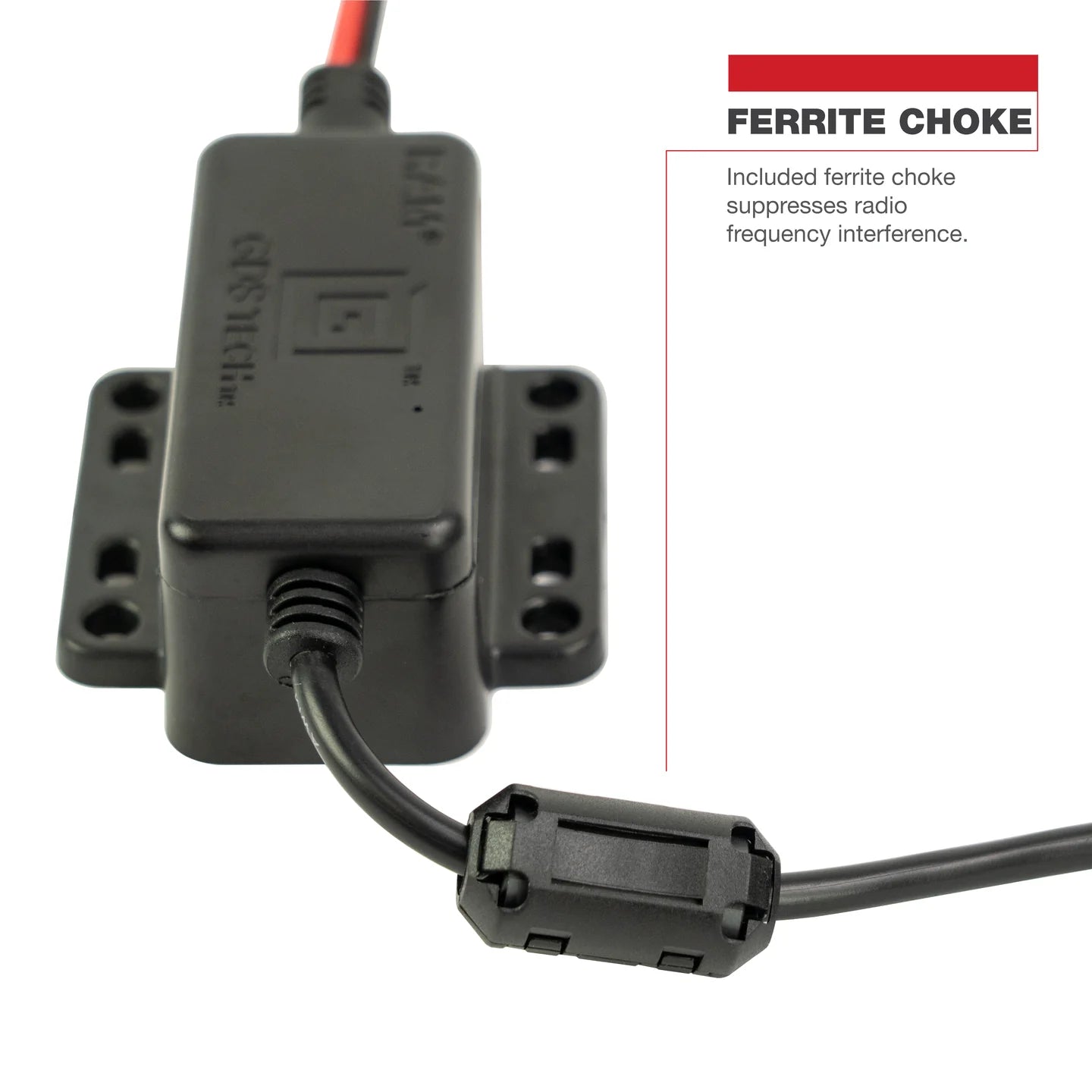

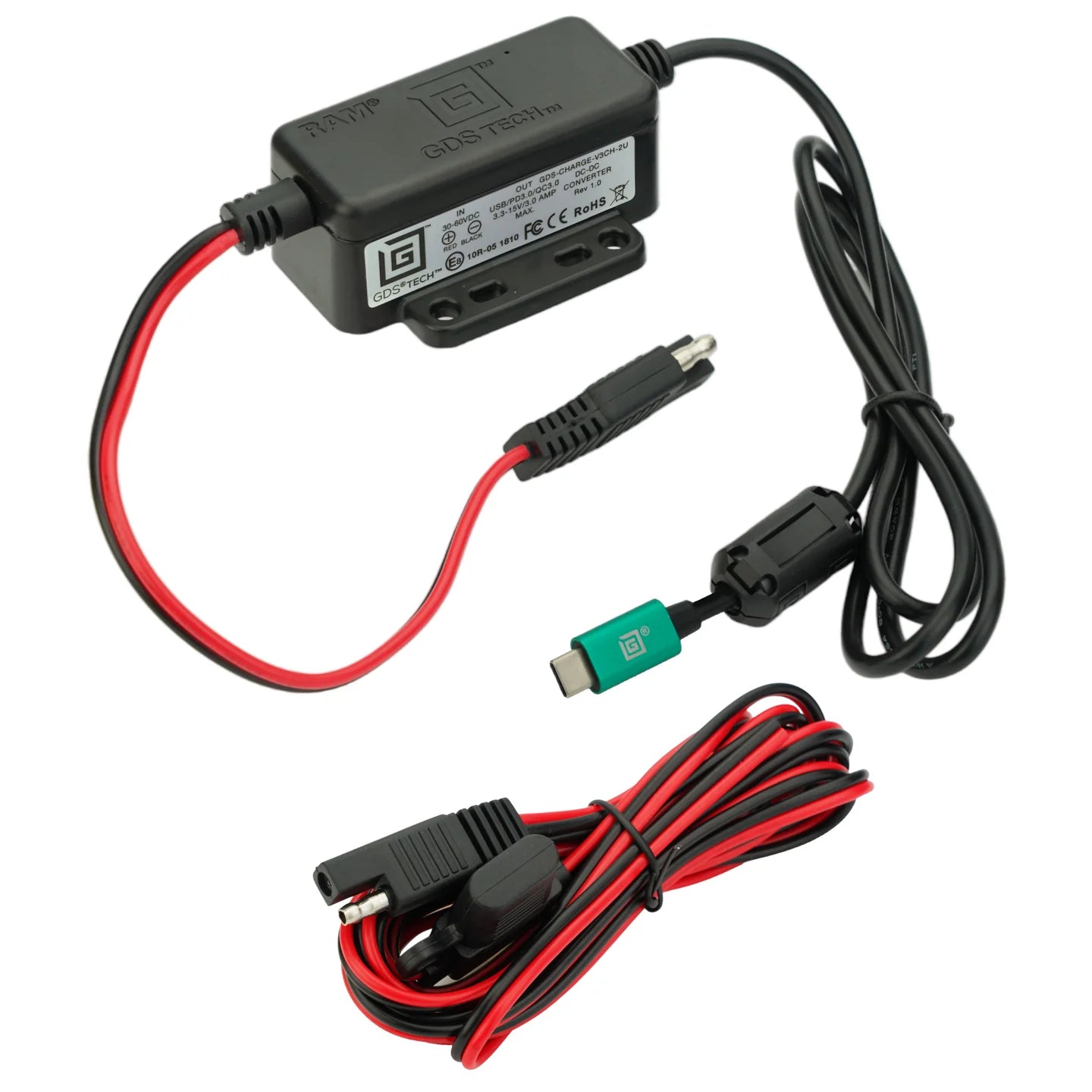

• The GDS® Modular Hardwire Charger is the ideal solution for providing power to any USB Type-C GDS® vehicle solution. By connecting directly to the power source of your vehicle, the GDS® Charger delivers up to 15V of USB Type-C power to your device. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. This charger supports Power Delivery. Always Protected. Always Connected.®

  PACKAGING TYPE

  Poly Bag

  INPUT VOLTAGE

  30-64VDC

  OUTPUT VOLTAGE

  5-15VDC

  OUTPUT CURRENT

  3A max

  INPUT CONNECTOR

  Bare Wire

  INPUT CABLE LENGTH

  2.5 Meters

  OUTPUT CONNECTOR

  USB Type-C Male

  OUTPUT CABLE LENGTH

  1 Meter

  OPERATING TEMPERATURE

  -20°C to +70°C

  STORAGE TEMPERATURE

  -40°C to +85°C

  REGULATORY

  Over Voltage Protection
  Short Circuit Protection
  Reverse Polarity Protection
  RoHS Compliance
  WEEE Compliance
  SAE J-1113-5 Load Dump (Transient Voltage)
  Moisture Resistant

  CERTIFICATIONS

  CE Certification
  RCM Certification
  FCC Certification
  UL 62368-1 Certificaton

  WARRANTY

  3 year warranty

  WEIGHT

  0.47 lb
