FEATURES

• Powered, key-locking dock provides charging capabilities for the Zebra ET8x tablets, with or without Rugged Frame and Friction Hinge Rugged Keyboard via DC 5.5mm power jack
• Two separate housings on the back of the dock allow for add-on modules such as the NFC Repeater, and temperature modules RAM^{® Vent-Temp™ and RAM® Temp-Right™}
• Built-in 2-hole accessory mounting plate for additional device mounting such as a phone, scanner, or NFC Repeater
• Dock accommodates tablet add-ons such as the Zebra Expansion Back, GDS^{® Roto-Mag™, and GDS® Hand-Stand™ accessories}
• Backed by a 3-year warranty
• Ball for back of unit not included
• Tablet not included

• OVERVIEW

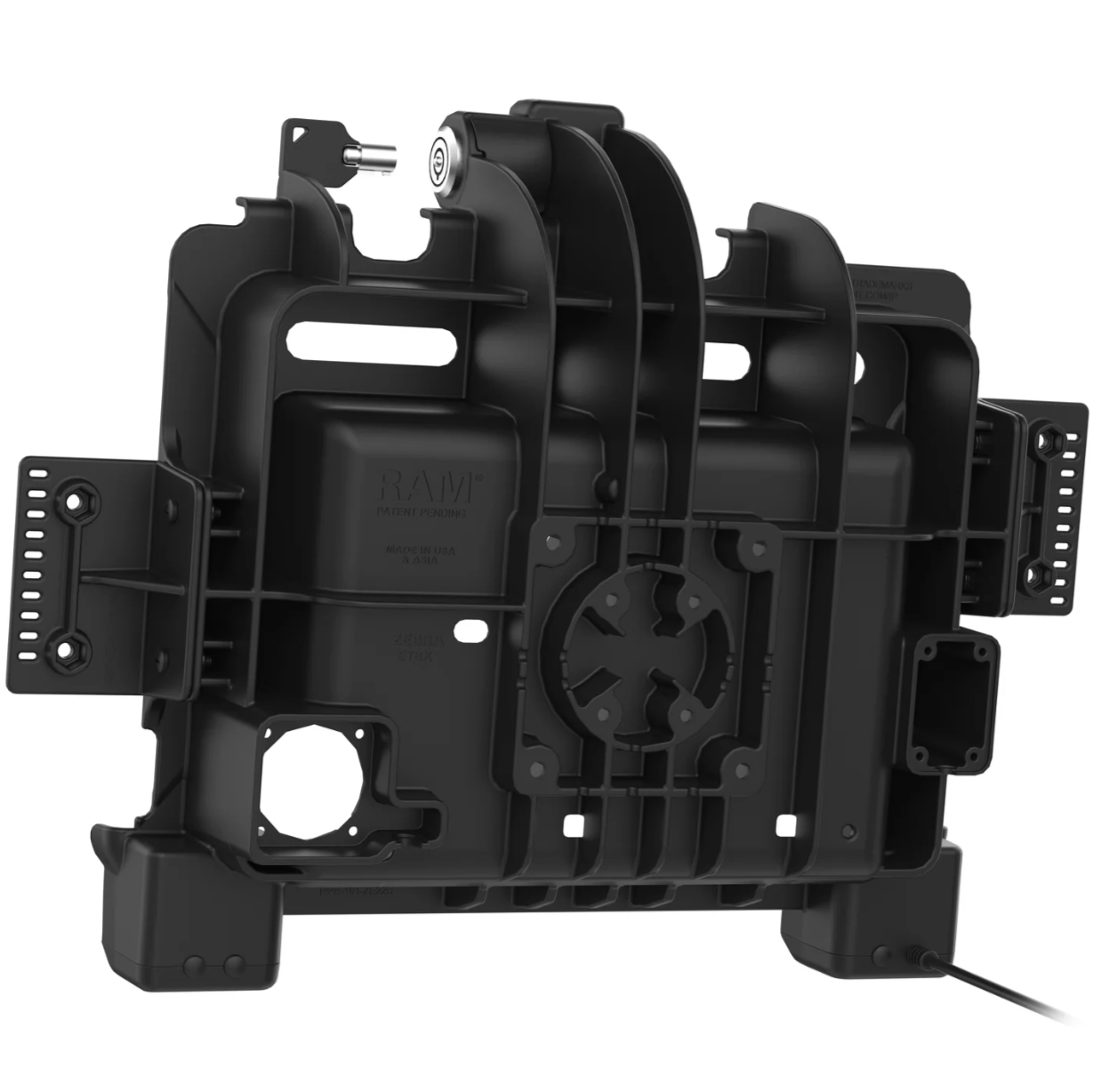

  This key-locking RAM® Dock (RAM-HOL-ZE22LU) features a powered form-fit design specifically for the Zebra ET8x tablets. Made for versatility out in the field, this dock supports the device with or without the Rugged Frame, and accommodates the optional Friction Hinge Rugged Keyboard. Power is provided through the pogo pin docking contacts and fed through the dock s 5.5mm DC power jack. Thoughtfully designed, this dock also allows space for tablet add-ons such as the Zebra Expansion Back, GDS® Roto-Mag™, and GDS® Hand-Stand™ ergonomic accessories. Embrace the weather with options to upgrade your dock with temperature modules. The RAM® Temp-Right™ can be added to regulate heat in extremely cold environments while the RAM® Vent-Temp™ utilizes the vehicle s A C vents to direct hot or cold air to the ET8x. Take the solution a step further by upgrading to an add-on NFC Repeater module that extends the device s internal NFC reader. Pair this with the docks built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for mounting the NFC Repeater, or any other additional device such as a phone, scanner, or printer.

  HARDWARE INCLUDED

  (2) Keys
  (1) Side bracket for accessory mounting
  (4) #8-32 x 5 8 Machine Screws
  (2) #8-32 x 1 2 Machine Screws
  (6) #8-32 Nylock Nuts
  (4) #10-24 x 5 8 Machine Screws
  (4) #10-24 Nylock Nuts
  (8) 4 Zip Ties
  (2) 7 Zip Ties

  PRODUCT DIMENSIONS

  Overall Height: 11.85
  Overall Width: 12.75
  Overall Depth: 4.36

  HOLE PATTERN

  75 x 75mm VESA
  4-Hole AMPS: 1.181 x 1.496

  MATERIALS

  High strength composite

  PACKAGING TYPE

  Poly Bag

  INPUT CONNECTOR

  5.5mm DC Connector

  INPUT CABLE LENGTH

  .21 Meters

  WARRANTY

  3 year warranty

  WEIGHT

  2.6 lb
