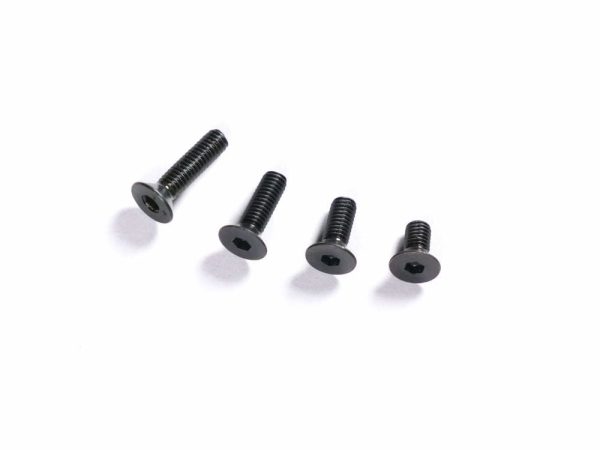

These screws are used within many models of Fox air and coil shocks to fasten the stroke travel spacers to the shock body.

Compatible with:

• 2021+ DHX2 and Float X2
• 2022+ Fox Float X and DHX
• 2024+ Float

• M3 screw size uses 2mm allen wrench. Torque = 1.1 Nm


  Use the correct length of screw for the amount of stroke spacers you are using:

  Float X2 DHX Float X Float:

  • 8mm = Used with ZERO stroke spacers*
  • 12mm = Used with ANY stroke spacers

  • DHX2:

    • 12mm = Used with ALL stroke spacer configurations

    •

      *The 6mm length screw can also be used with ZERO stroke spacers in either shock if the 8mm length is sold out or if you just want the smallest screw for any reason.



      INSTALLATION GUIDES:

      • 2021+ Fox DHX2 & DHX Stroke Travel Adjustment Procedure
      • 2021+ Fox Float X2 Stroke Travel Adjustment
