• Form-fit + single USB Type-A dock designed specifically for the Zebra ET40 & ET45 10 tablets with IntelliSkin^{® protective sleeve, featuring GDS® Technology™}
• When connected to a power source via USB Type-C connector, integrated pogo pins provide power to the IntelliSkin-wrapped ET4x while docked
• Space in the back of the dock to accommodate tablet add-ons such as the Expansion Back, PowerPack Battery, and GDS^{® Ergo™ accessories}
• Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM^{® 2-hole diamond bases and accessory side bracket}
• Backed by a 3-year warranty

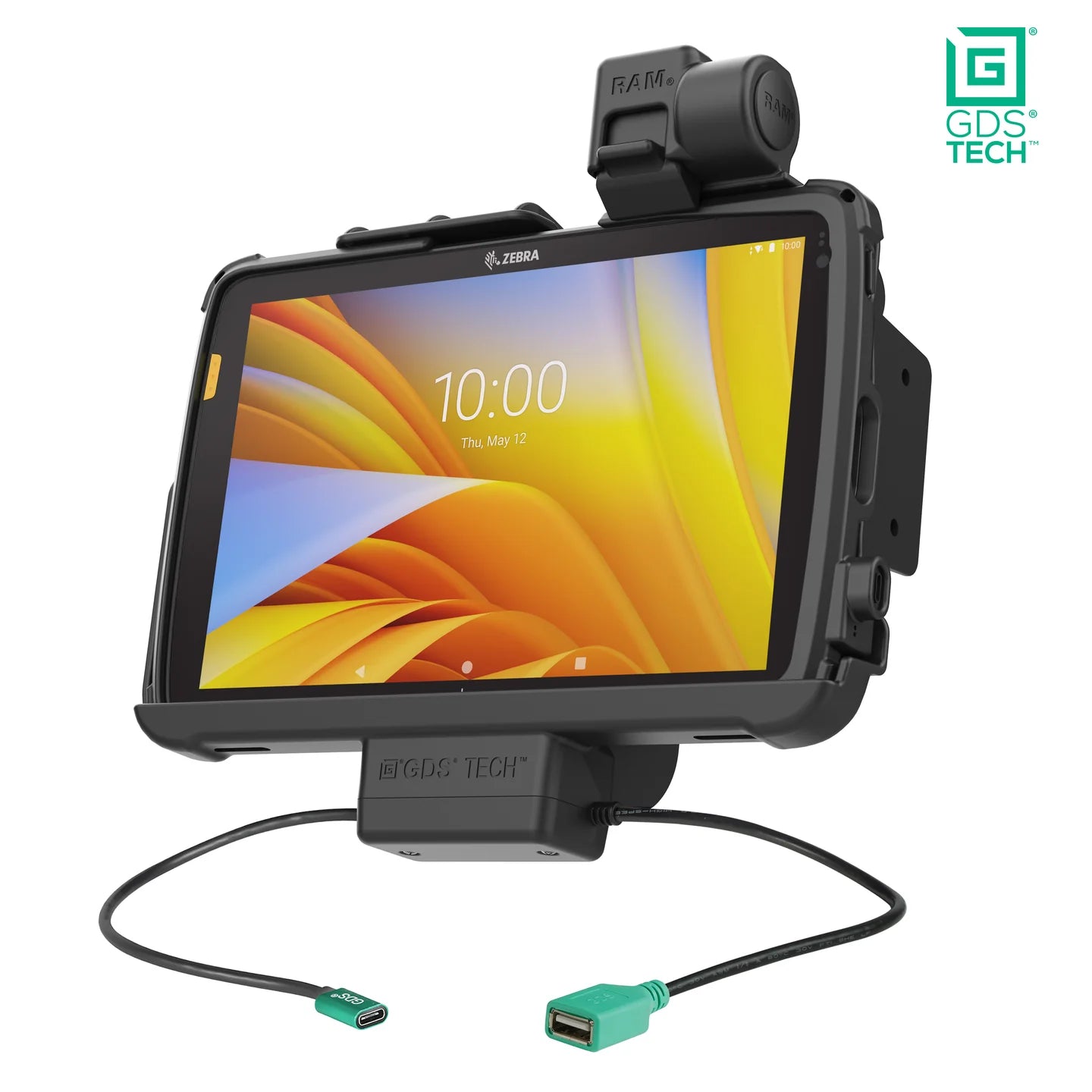

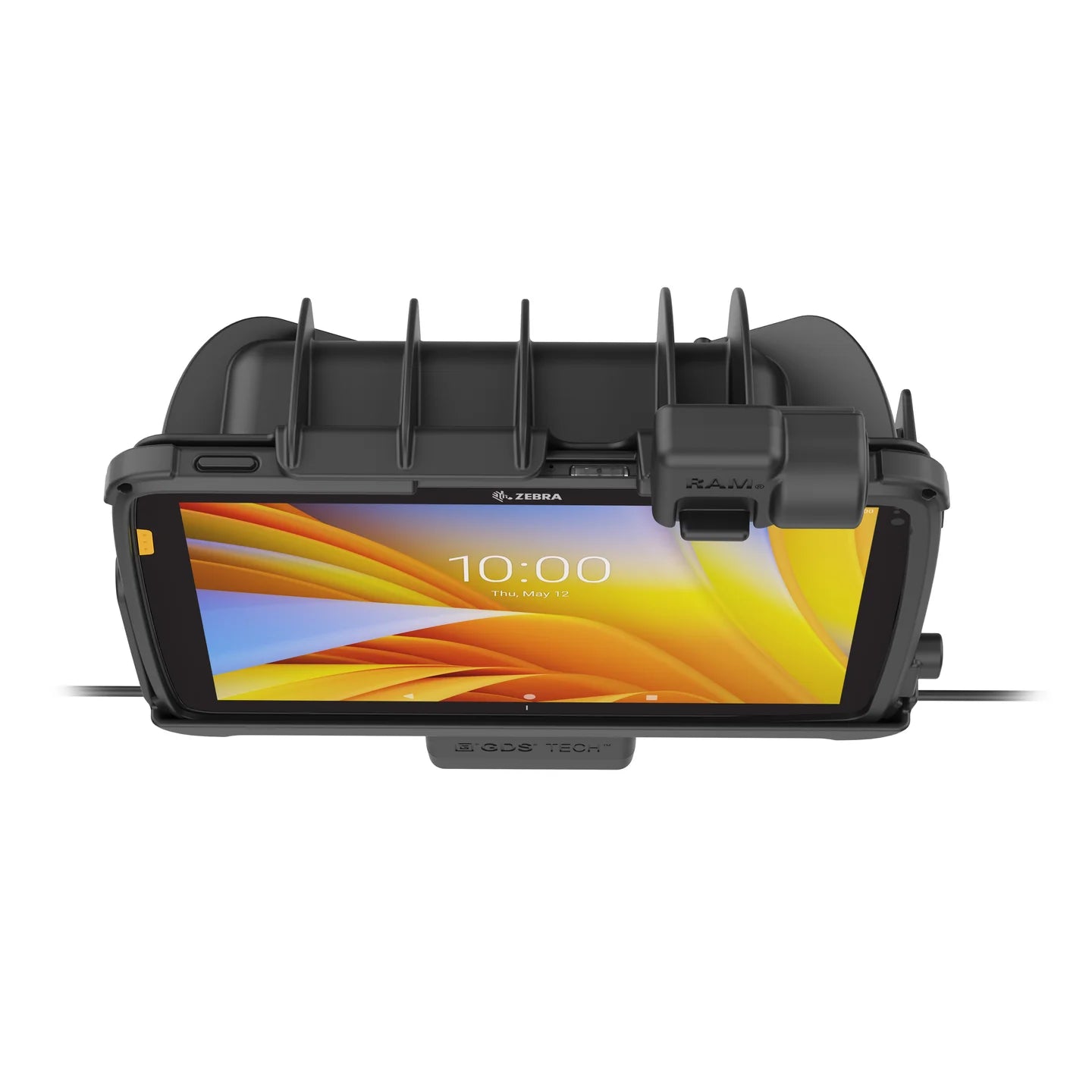

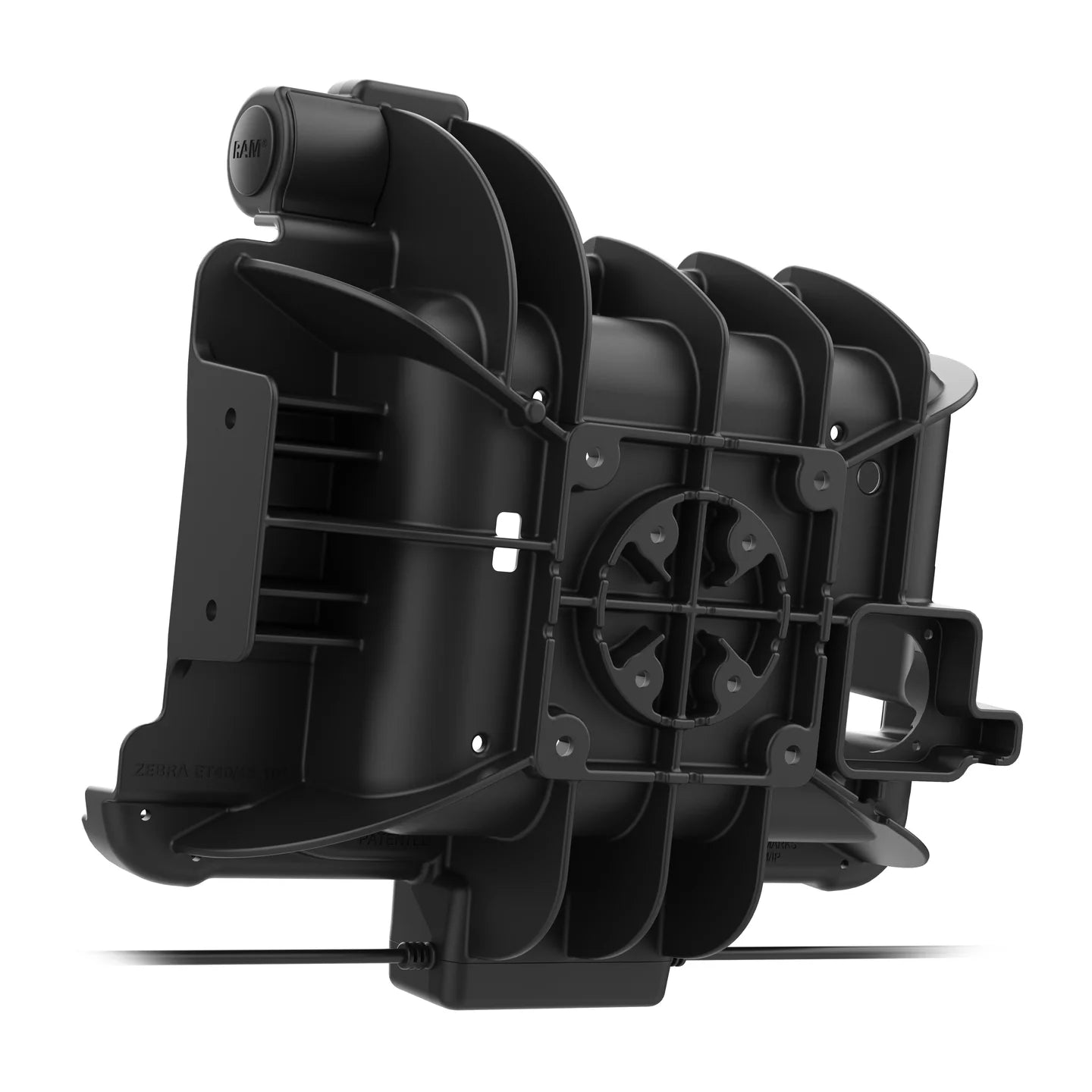

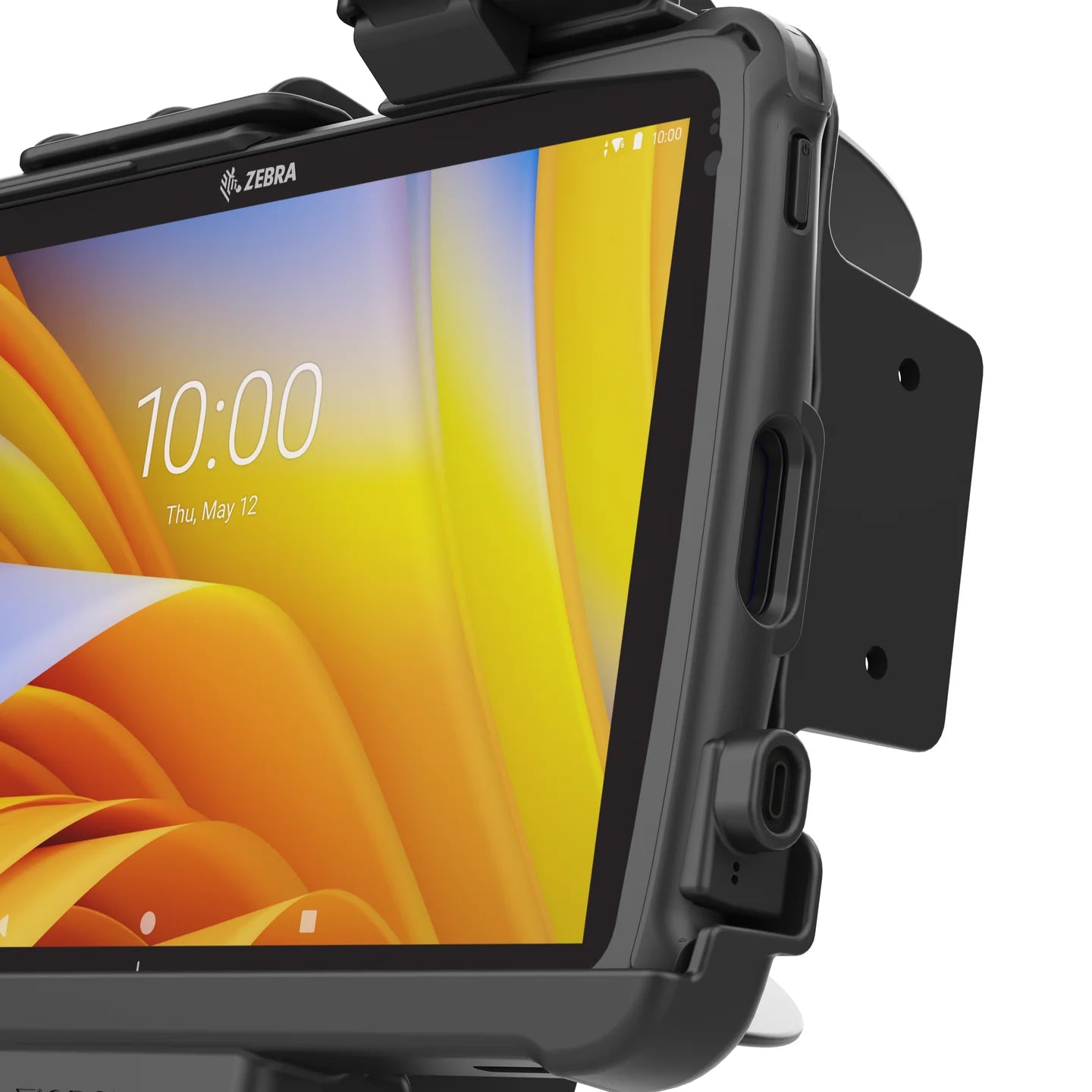

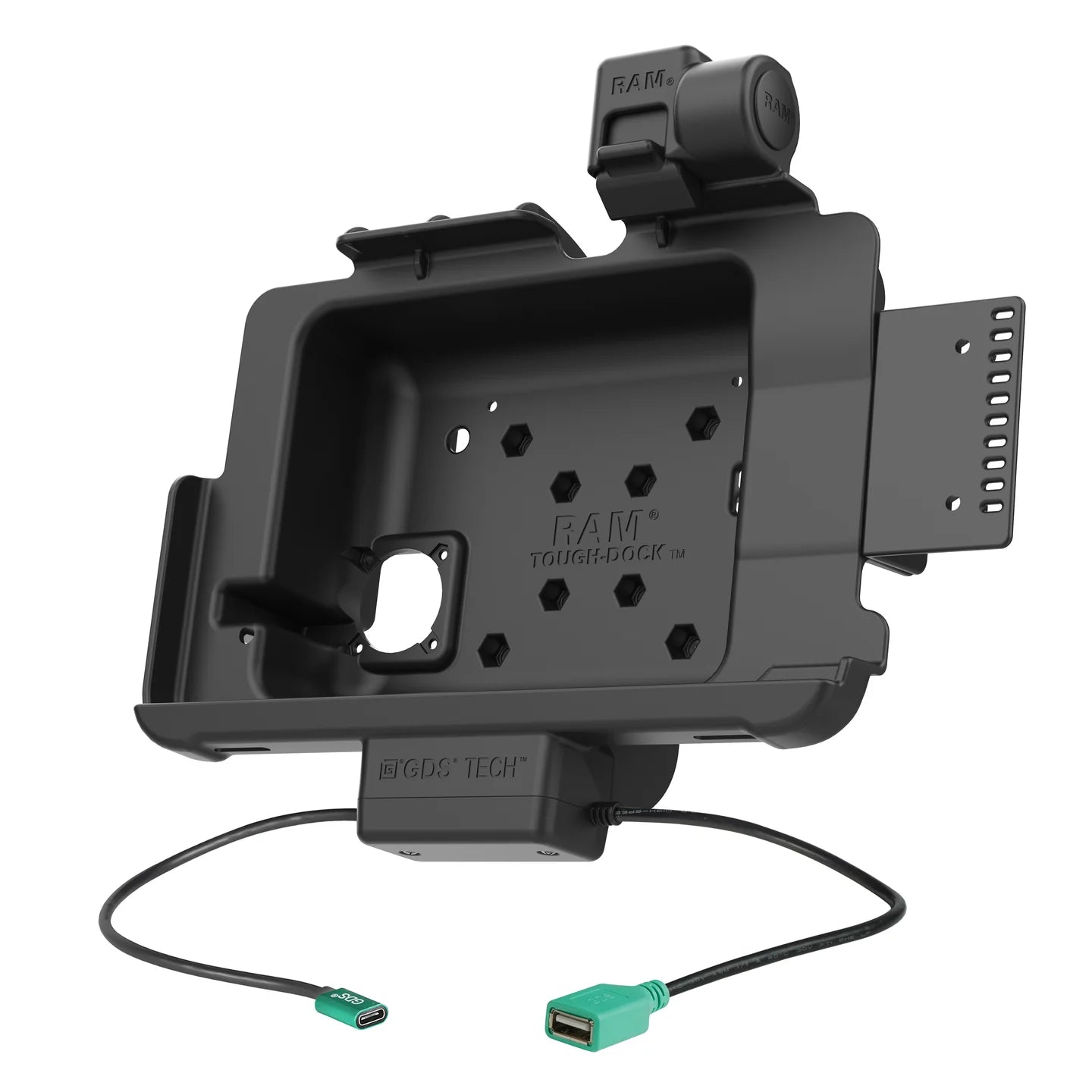

• For frequent docking and undocking of the Zebra ET40 & ET45 10 tablets wrapped in an IntelliSkin® protective sleeve, this form-fit GDS® vehicle dock (RAM-GDS-DOCKNLL-ZE21PDU) features a top latch design for securing the tablet without wear and tear on the dock itself. Power is provided via a USB Type-C connector and allows you to keep the device charged through the pogo pin contacts when the IntelliSkin®-wrapped ET4x 10 is docked. A single USB Type-A pigtail connector is provided for adding one additional input device. The dock also includes space in the back for tablet add-ons such as the Zebra Expansion Back, PowerPack Battery, and GDS® Ergo™ accessories like the GDS® Roto-Mag™ and GDS® Hand-Stand™. To mount this dock, pair any RAM® 4-hole AMPS or 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the GDS® Ecosystem™ and the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone, scanner, printer, or any other handheld device. Always Protected. Always Connected.®



  HARDWARE INCLUDED

  (1) Side bracket for accessory mounting
  (4) #8-32 x 5 8” Machine Screws
  (2) #8-32 x 1 2” Machine Screws
  (6) #8-32 Nylock Nuts
  (4) #10-24 x 5 8” Machine Screws
  (4) #10-24 Nylock Nuts
  (2) Small Cable Ties

  HOLE PATTERN

  75 x 75mm VESA
  4-Hole AMPS: 1.181 x 1.496

  MATERIALS

  High strength composite

  PACKAGING TYPE

  Poly Bag

  OUTPUT VOLTAGE

  5V – 20V @ 3A

  POWER OUTPUT

  60W

  INPUT CONNECTOR

  USB Type-C

  INPUT CABLE LENGTH

  215mm

  OUTPUT CONNECTOR

  USB 2.0 Type A

  OUTPUT CABLE LENGTH

  215mm

  PERIPHERAL OUTPUT

  500mAh

  TRANSFER SPEED

  12Mbps

  CERTIFICATIONS

  RoHS
  WEEE
  CE
  UKCA

  WARRANTY

  3 year warranty

  WEIGHT

  1.65 lb

  ADDITIONAL INFORMATION

  IntelliSkin® is required for this dock. SeeRAM-GDS-SKIN-ZE21C-NG  for compatible IntelliSkin®.
